Description

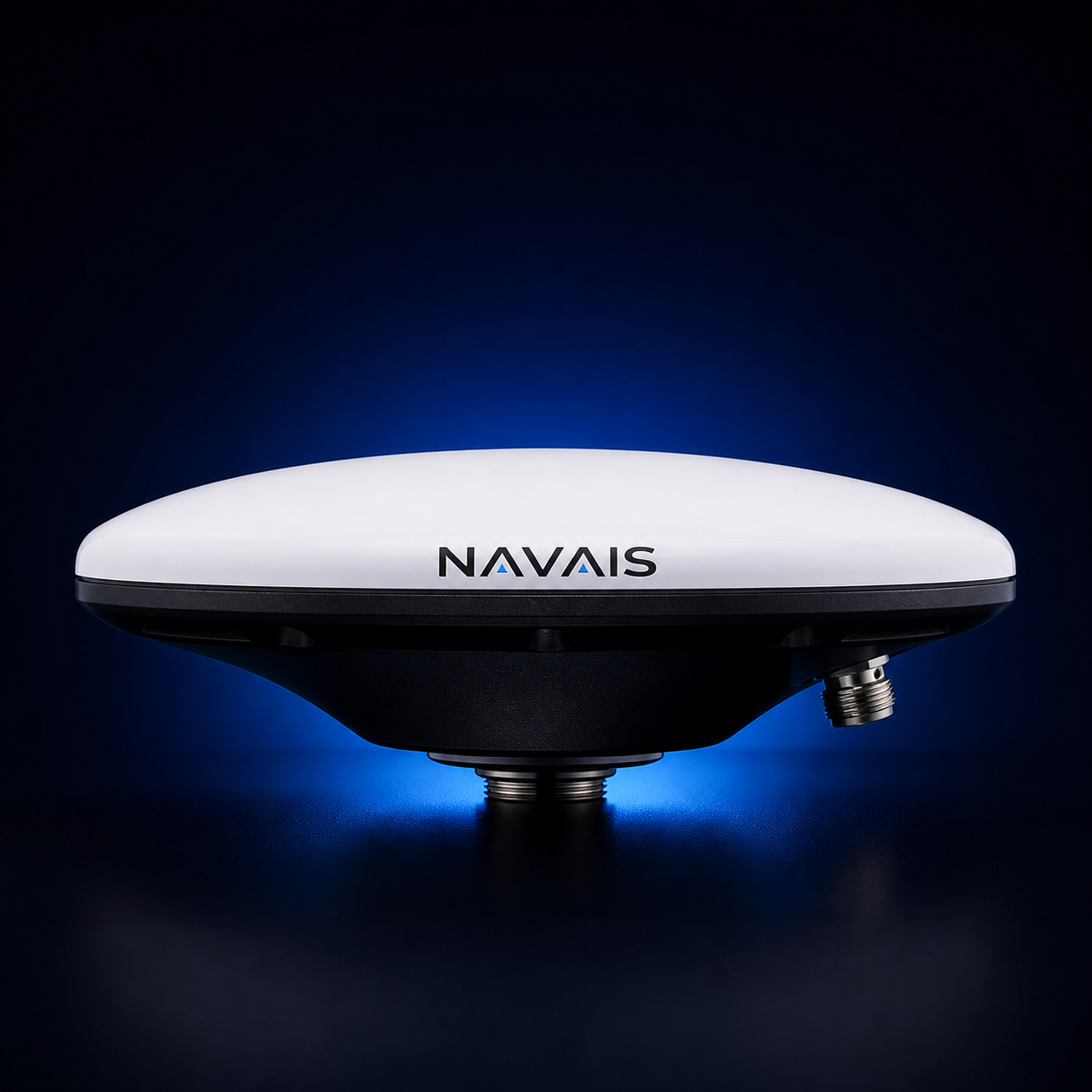

The NAVAIS NS-150 GNSS+ PRO is a full-frequency industrial survey antenna engineered for high-accuracy positioning in demanding field installations. It supports professional RTK and PPK surveying, CORS, machine control, marine positioning and monitoring applications.
Key capabilities
- GPS L1/L2/L5; GLONASS L1/L2/L3; BeiDou B1/B2/B3; Galileo E1/E5/E6; QZSS; NavIC; SBAS and L-Band
- 38 ±2 dB LNA gain, noise figure below 2 dB and 50-ohm impedance
- 3.3–12 VDC input with current consumption up to 45 mA
- TNC-K connector and compact Ø160 × 66.5 mm enclosure
- Suitable for survey, mapping, precision agriculture, infrastructure and marine use
Manufacturer specifications: NAVAIS. Availability and final technical compliance are confirmed at quotation.
