Description

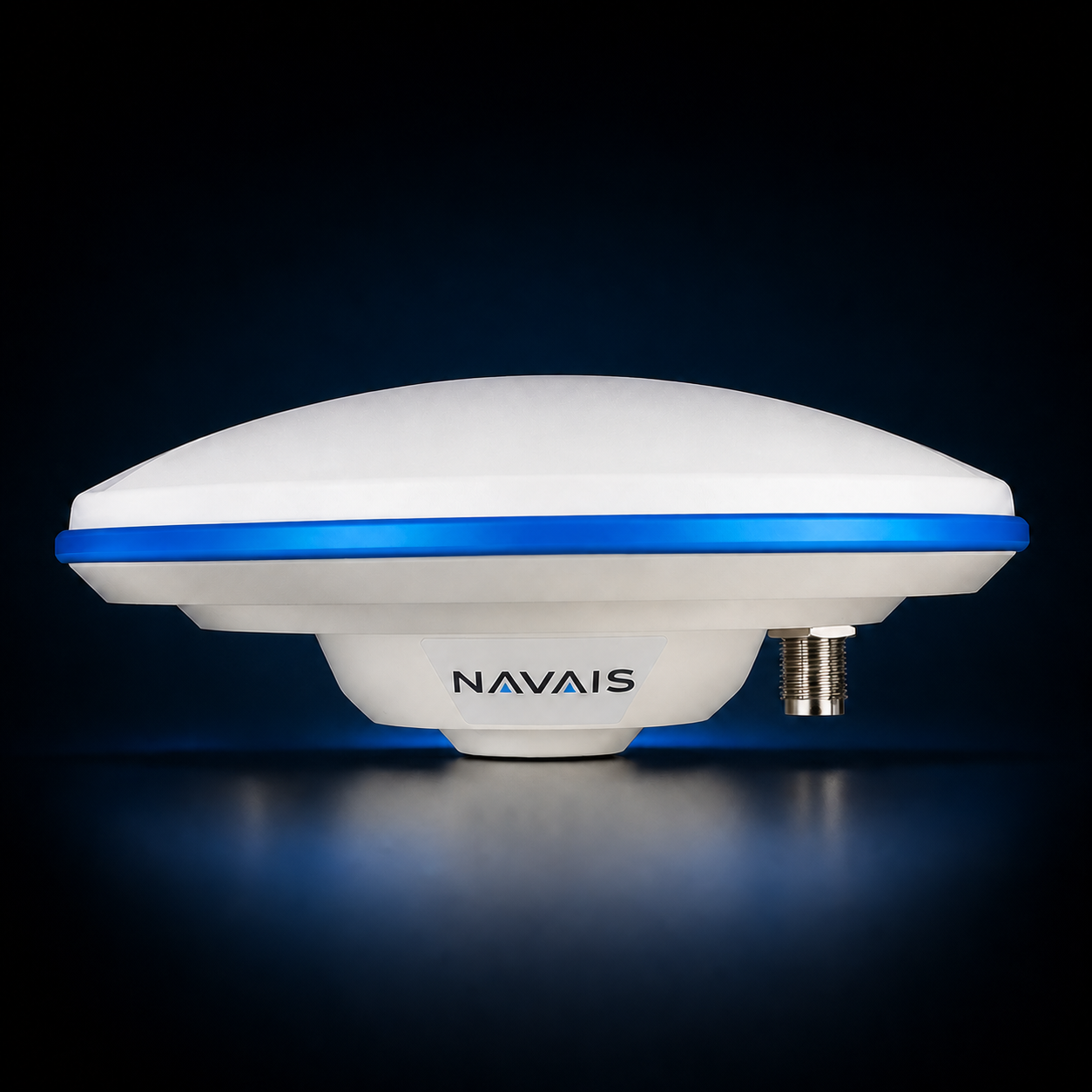

The NAVAIS NS-50 is a compact full-band GNSS survey antenna for precise field positioning, reference stations, marine work and monitoring installations.
Key capabilities
- GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC and L-Band support
- L1/L2/L5/L6/L-Band reception with right-hand circular polarization
- Typical 5.5 dBi gain, axial ratio up to 3 dB and phase-centre stability within ±2 mm
- 38 ±2 dB LNA gain with noise figure up to 1.8 dB
- TNC female connector and 5/8-11 UNC mounting
- Ø156 × 61 mm, no more than 380 g, operating from -40°C to +85°C
Manufacturer specifications: NAVAIS. Availability and final technical compliance are confirmed at quotation.
